What Is a Digital Power Meter and What Types Are There?

A digital power meter measures electrical power by sampling voltage and current, then processing those signals into readable values. Depending on its design, it may show real power in watts, apparent power in volt-amperes, power factor, or accumulated energy in kilowatt-hours. Its core purpose is to show how much electrical power a device or circuit uses under specific operating conditions. Some meters also record changes over time.

For example, an electrician can connect a meter to a small pump and compare its power draw during startup and steady operation. The readings can help identify unusual consumption or check whether a system performs as expected. A displayed number can seem definitive, but it depends on correct connections, suitable measurement ranges, and the meter’s condition. Details matter. Distorted waveforms or unstable loads may also affect results, especially with basic instruments. I would not treat one reading as a full diagnosis; repeating the measurement under consistent conditions gives more useful evidence. A digital display makes results easier to read, not automatically more accurate.

A digital power meter measures electrical power by reading voltage and current at the same time. Its input circuits condition each signal, while an analog-to-digital converter turns them into numerical samples. The meter pairs each voltage sample with a current sample, multiplies them, and averages the results over time. That average is real power, usually displayed in watts. Timing matters.

On a DC circuit, power is generally voltage multiplied by current. For AC, voltage and current change continually, so their timing and waveform shape affect the result. The meter can also calculate root-mean-square values, apparent power, and power factor. Some models examine harmonics, which can make readings more informative when loads switch rapidly. A stable display is useful, but it does not prove the setup is correct. Incorrect wiring, unsuitable measurement ranges, or poor connections can distort results.

Tips: Check the meter’s wiring diagram and select a suitable range before measuring. Compare readings under steady conditions, and note the load being tested. Small setup details matter.

A digital power meter measures electrical conditions and turns them into readable values. Its voltage-sensing circuit tracks the supply, while a current sensor—often a shunt or transformer—detects current flowing through a conductor. An analog-to-digital converter samples these signals, and a processor calculates the results. The screen then displays them. That matters.

Common readings include voltage in volts, current in amperes, and active power in watts. Energy use appears in kilowatt-hours, the unit often used on utility bills. Many meters also show frequency and power factor. Power factor indicates how effectively electrical power is being used; a low value can mean current and voltage are out of step. Not always. A single number rarely explains the whole system.

For a practical check, compare the displayed voltage with the equipment’s rated range, then observe power while a load starts and runs. A motor may draw a brief surge, so one glance can mislead. Meter accuracy also depends on sensor placement, setup, and calibration. A precise-looking display can still be wrong. I would treat unusual readings as clues, not proof, and verify them with a suitable reference instrument before making adjustments.

Digital power meters are grouped by the circuits they measure and the functions they provide.

Single-phase meters suit household circuits, lighting, and small motors. They can show voltage, current, power, and accumulated energy on a compact screen.

Three-phase meters are designed for larger loads, such as pumps or workshop equipment. Some measure each phase separately, which helps reveal an uneven load. Small differences matter.

Meters also vary by form and capability.

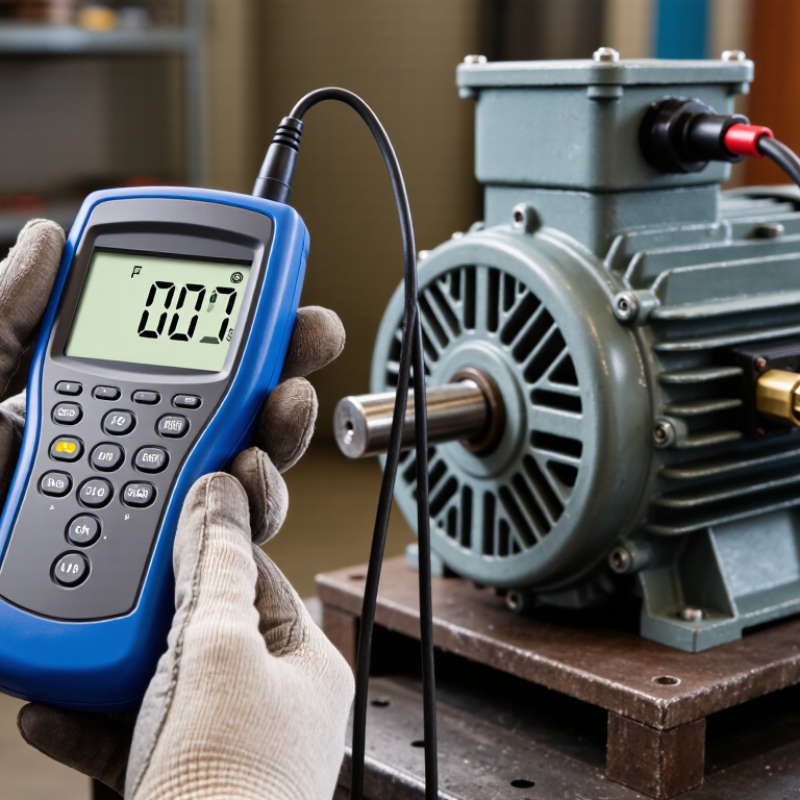

Panel meters sit in an electrical cabinet and provide a continuous reading at a glance. Handheld models are useful for checking equipment at different points, though their readings depend on correct probe placement.

Multifunction meters combine measurements such as active power, reactive power, and power factor. Power-quality meters can also record events like voltage dips and harmonic distortion.

These categories can overlap: a panel-mounted meter may include power-quality features. In practice, check the wiring method, measurement range, and accuracy specification before choosing one.

A meter that cannot handle a changing or distorted waveform may report misleading values. It is easy to overlook that detail.

A clear display is helpful, but it cannot replace a suitable measurement method.

A digital power meter measures electrical values such as voltage, current, power, and energy use. In a small workshop, it can reveal how much electricity a motor draws while starting, then show its steadier running load. That difference matters. Facilities teams use meters to track equipment consumption, investigate unexpected bills, and check whether a load approaches a circuit’s capacity. In laboratories, readings can help compare devices under repeatable conditions. A meter may also record power factor or store readings over time, which helps identify patterns that a quick glance would miss. Still, one measurement is only a snapshot.

Selection depends on the job. Check the expected voltage, current range, and whether the system is single-phase or three-phase. Accuracy specifications matter when comparing small changes, but installation and sensor choice can affect the result too. For ongoing monitoring, consider data logging, display readability, and communication options. A bright screen is useful in a dim electrical room. So is a clear alarm. Confirm that the meter suits the environment, including temperature and dust exposure. Do not assume every meter handles distorted waveforms equally well; some electronic loads can make readings less straightforward. I would verify the manual’s measurement conditions before trusting a surprising number.
