How to Choose the Right Modbus Sensor for Your Needs?

Choosing the right modbus sensor is not simply a matter of matching a product to a datasheet. The decision affects measurement accuracy, installation time, maintenance cost, and the reliability of every downstream control action. Fortune Business Insights valued the global industrial sensors market at approximately USD 27.07 billion in 2023. Its report also projects continued growth through 2032, driven by factory automation, energy management, and connected equipment. This expansion creates more choices, but it also creates more opportunities for poor selection.

A practical evaluation should begin with the measurement itself. A temperature sensor inside a humid pump room needs a suitable IP rating, stable calibration, and resistance to condensation. A pressure sensor on a compressed-air line may require a different range, process connection, and response time. Check whether the device supports Modbus RTU over RS-485 or Modbus TCP over Ethernet. Then verify baud rate, slave address, register mapping, data format, and electrical isolation. One incorrect register assumption can turn a normal reading into a dangerous control decision.

The Modbus Organization describes Modbus as an application-layer protocol widely used across industrial networks. Yet protocol compatibility alone does not guarantee dependable performance. Cable length, grounding, electromagnetic interference, and termination resistors still matter. Vendor documentation should be clear, searchable, and supported by calibration records. UL, CE, or other relevant certifications may also influence deployment requirements. A neat checklist cannot replace field testing. That is where many selections become uncertain. Compare total ownership costs, not only the purchase price, and test one unit under real operating conditions before approving a larger installation.

Table of Contents [Hide]

1 Define Your Measurement Requirements and Operating Conditions

2 Compare Modbus Sensor Types, Parameters, and Communication Options

3 Check Protocol Compatibility, Wiring, and Network Architecture

4 Evaluate Accuracy, Durability, Installation, and Maintenance Needs

5 Select the Best Sensor Based on Cost, Support, and Future Expansion

Define Your Measurement Requirements and Operating Conditions

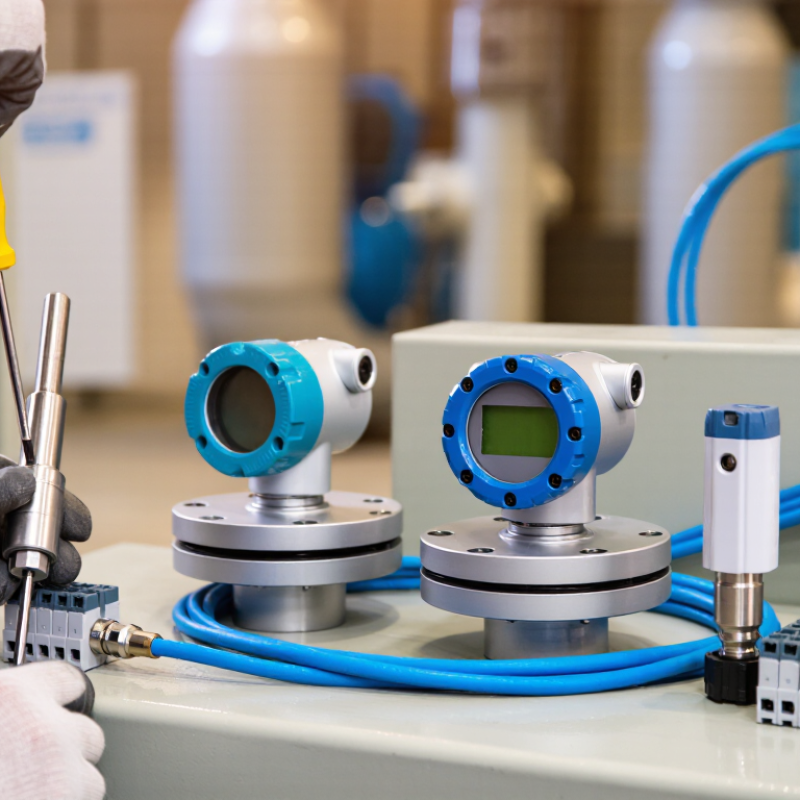

How to Choose the Right Modbus Sensor for Your Needs?

Define your measurement requirements before comparing Modbus sensors. Identify the variable, range, accuracy, response time, and installation point. A pressure sensor for a dusty compressor room needs different protection than one inside a clean laboratory. The U.S. Department of Energy reports that compressed-air leaks can waste 20–30% of compressor output. Therefore, a suitable pressure range and stable sampling rate can support faster leak detection. Do not select accuracy from a product sheet alone. Check repeatability, calibration conditions, and uncertainty across the actual temperature range. Field conditions often expose weaknesses that laboratory tests hide.

Operating conditions matter equally. Record ambient temperature, humidity, vibration, chemical exposure, cable length, and available power. Match enclosure protection with IEC 60529 ratings, then confirm connector sealing and grounding practices. Modbus communication also requires practical checks. The Modbus Application Protocol Specification uses 16-bit registers, but sensor vendors may map values differently. Confirm register addresses, byte order, scaling, units, and exception responses before installation. One wrong register can produce believable, useless data.

Tips: Create a one-page measurement profile before purchasing. Include normal and worst-case values. Test one sensor beside a trusted reference for several days. Watch drift. A perfect selection is rare; your first specification may need revision after real-site testing. Keep spare cable length modest, because unnecessary wiring can increase noise and maintenance work.

Compare Modbus Sensor Types, Parameters, and Communication Options

Choosing a Modbus sensor starts with the measurement, not the connector. Temperature, pressure, flow, vibration, and energy sensors use different accuracy ranges and response times. A field device may support Modbus RTU through RS-485, while another uses Modbus TCP over Ethernet. RTU suits long, simple cable runs. TCP fits plants with existing network infrastructure, but it needs stronger network controls.

Check the practical parameters carefully. Confirm register addresses, data types, byte order, baud rate, parity, slave ID, and maximum polling interval. Also inspect IP protection, operating temperature, isolation, and power requirements. The Modbus Application Protocol Specification v1.1b3 defines common message structures, but manufacturers can still document registers differently. That small gap causes real commissioning delays. I have seen a working sensor produce useless values because the controller read a signed integer as an unsigned one.

Tips: Build a register test sheet before installation. Record one known physical value, its raw register value, and the expected unit. For TCP devices, separate control traffic from general office traffic. NISTIR 8259A recommends device identification, data protection, and secure update capabilities for connected devices. These checks matter as industrial networks expand. The International Energy Agency’s Energy Technology Perspectives 2024 reports that industry produces about one-quarter of global greenhouse-gas emissions. Reliable measurements support better energy decisions, though sensor data alone cannot fix poor maintenance. Choose the simplest communication option that meets distance, speed, and cybersecurity needs.

How to Choose the Right Modbus Sensor for Your Needs? - Compare Modbus Sensor Types, Parameters, and Communication Options

Sensor Type	Typical Measured Parameters	Common Measurement Range	Typical Accuracy	Modbus Communication	Power and Wiring	Best Suited For	Key Selection Considerations
Temperature Sensor	Air temperature Water temperature Process temperature	-40 to 125 °C for many industrial probes; wider ranges are available with specialized probes	Typically ±0.2 to ±0.5 °C, depending on the sensing element, probe, and calibration	Modbus RTU over RS-485 is common; Modbus TCP is available for Ethernet installations	Usually 9–24 V DC for transmitters; passive RTD probes require an external measurement module	Cold storage, HVAC, laboratories, machinery, tanks, and general process monitoring	Check probe material, response time, ingress protection, operating temperature, and whether the sensor is designed for immersion, ducts, or ambient air
Humidity and Temperature Sensor	Relative humidity Air temperature Dew point	0–100% RH; commonly -40 to 85 °C for electronics and enclosure-rated applications	Typically ±2 to ±3% RH and ±0.2 to ±0.5 °C within the specified operating range	Modbus RTU over RS-485; some models support Modbus TCP through Ethernet	Commonly 9–24 V DC; shielded twisted-pair cable is recommended for longer RS-485 runs	Server rooms, museums, greenhouses, warehouses, clean areas, and building automation	Review condensation resistance, long-term drift, filter type, sensor replacement options, and the effect of high humidity on accuracy
Pressure Sensor	Gauge pressure Absolute pressure Differential pressure	Ranges vary widely, such as 0–10 kPa for room differential pressure or 0–1 MPa for general process pressure	Typically ±0.25 to ±1.0% of full scale, depending on pressure range and temperature compensation	Modbus RTU is widely used; Modbus TCP is suitable when direct Ethernet access is required	Typically 9–24 V DC; process versions may use threaded, flange, or hygienic connections	Pumps, compressed air, filtration, HVAC ducts, water systems, and process equipment	Match the pressure type, proof pressure, burst pressure, wetted materials, connection size, and overpressure protection to the application
Flow Sensor	Liquid flow Gas flow Flow total	Depends on pipe size and technology; many industrial devices are specified by velocity or nominal flow range	Often approximately ±1 to ±2% of reading for suitable installation conditions; some technologies provide better performance	Modbus RTU, pulse output, and sometimes Modbus TCP; registers may include instantaneous flow and accumulated volume	Usually 12–24 V DC; installation may require separate power, signal, and grounding provisions	Water management, cooling systems, irrigation, compressed air, and chemical processes	Consider fluid conductivity, viscosity, pipe diameter, straight-pipe requirements, pressure loss, empty-pipe detection, and flow direction
Water Quality Sensor	pH ORP Conductivity Dissolved oxygen	Examples: pH 0–14; conductivity from low µS/cm to high mS/cm depending on the probe cell	Commonly pH ±0.05–0.1; conductivity accuracy varies with cell constant, temperature compensation, and calibration	Modbus RTU is common for digital analyzers; registers may also expose temperature and diagnostic values	Often 12–24 V DC; probes may require separate transmitters and regular calibration	Water treatment, aquaculture, laboratories, hydroponics, and industrial wastewater monitoring	Check calibration requirements, probe life, chemical compatibility, temperature compensation, cleaning needs, and response time
Light and UV Sensor	Illuminance Solar radiation UV intensity	Illuminance may range from 0 to 100,000 lux; solar radiation sensors are commonly specified in W/m²	Depends on spectral response and calibration; many general-purpose devices are specified around ±5% of reading	Modbus RTU over RS-485 is typical; some outdoor systems use an Ethernet gateway for Modbus TCP	Typically 9–24 V DC; outdoor installations may require surge protection and weatherproof cable glands	Smart lighting, greenhouses, solar monitoring, building controls, and environmental stations	Verify spectral range, cosine response, outdoor sealing, optical window maintenance, mounting orientation, and exposure to direct weather
Particulate Matter Sensor	PM1.0 PM2.5 PM10 Particle count	Commonly 0–1,000 µg/m³ for particle mass concentration, with model-specific limits	Often specified by a concentration-dependent tolerance rather than a single fixed percentage	Modbus RTU is common; registers may provide PM values, particle counts, temperature, and humidity	Usually 5 V or 12–24 V DC depending on the module; fans and heaters can affect current consumption	Indoor air quality, ventilation control, occupational monitoring, and clean-area observation	Consider airflow direction, fan lifetime, condensation, dust loading, calibration method, warm-up time, and maintenance access
Gas Sensor	CO₂ CO VOC Combustible gases	Examples: CO₂ 0–5,000 ppm for indoor applications; other gases require application-specific ranges	Often ±30 to ±50 ppm plus a percentage of reading for CO₂; electrochemical and catalytic sensors vary by gas	Modbus RTU is widely used; alarm status, concentration, temperature, and sensor diagnostics may be available in registers	Typically 9–24 V DC; hazardous-area applications may require certified equipment and installation practices	Ventilation control, safety monitoring, laboratories, industrial spaces, and environmental measurement	Identify the target gas, cross-sensitivity, alarm thresholds, calibration interval, warm-up time, ventilation requirements, and safety certification
Vibration Sensor	Acceleration Velocity RMS Displacement Temperature	Common industrial monitoring ranges include 0–20 mm/s RMS or acceleration ranges of several g, depending on the device	Depends on frequency range, mounting method, signal processing, and selected measurement unit	Modbus RTU is common; registers may include RMS values, peak values, crest factor, frequency bands, and alarms	Typically 9–24 V DC; solid mechanical mounting and cable shielding are important in industrial environments	Motors, pumps, fans, compressors, gearboxes, and predictive maintenance systems	Check frequency bandwidth, sampling method, mounting thread, axis count, alarm logic, environmental rating, and whether raw waveform data is required
Position and Distance Sensor	Linear distance Level Displacement	Ranges vary from millimeters for short-range displacement sensors to several meters for non-contact level sensors	Often specified as a percentage of full scale or a distance-dependent value; target material and alignment affect performance	Modbus RTU is common; some devices also provide switching outputs or analog signals	Typically 12–24 V DC; wiring depends on whether the device is ultrasonic, radar, optical, or magnetic	Tank level, machine positioning, material handling, automation, and object detection	Evaluate target material, dead zone, beam angle, mounting position, dust or vapor, reflective surfaces, and measurement update rate

Selection note: Actual ranges, accuracy, power consumption, register maps, and environmental ratings vary by sensor design. Always verify the technical datasheet, Modbus register definition, communication settings, and installation requirements before deployment.

Check Protocol Compatibility, Wiring, and Network Architecture

Choosing a Modbus sensor starts with protocol compatibility, not sensing range. Modbus RTU uses serial communication, while Modbus TCP runs through Ethernet. A sensor can measure accurately and still fail on the wrong network. Check baud rate, parity, stop bits, function codes, and register mapping. The Modbus Application Protocol Specification defines device addresses from 1 to 247, with address 0 reserved for broadcast.

Wiring deserves equal attention. Traditional RS-485 networks support up to 32 unit loads without repeaters, according to TIA-485-A guidance. Use twisted, shielded cable where electrical noise is present. Place 120-ohm termination at both physical ends, not at every sensor. Keep drop cables short. I have seen clean-looking panels fail because one termination resistor was installed in the middle. Small mistake.

Network architecture changes the selection again. A point-to-point link may need only one sensor and a controller. Larger systems need segmentation, gateways, diagnostics, and clear address planning. NIST SP 800-82 Rev. 3 recommends separating operational technology networks and controlling traffic between zones. That advice matters when sensors share infrastructure with drives or remote access devices. Before ordering, test the sensor with the intended master. Read real register values, not only the data sheet. A spreadsheet can lie. Also verify power requirements, cable length, grounding, and recovery behavior after communication loss. Performance assumptions should be challenged during commissioning.

How to Choose the Right Modbus Sensor?

Compare the practical cable-segment limits of common Modbus physical layers before selecting a sensor, wiring method, and network architecture.

Protocol Compatibility Modbus RTU and Modbus ASCII commonly operate over serial RS-485, while Modbus TCP operates over Ethernet. The sensor, controller, and gateway must use compatible protocol settings.

Wiring RS-485 supports long multidrop cable runs, with a commonly cited maximum segment length of about 1,200 m at lower data rates. Ethernet copper segments are generally limited to 100 m.

Network Architecture Use a daisy-chain bus for RS-485 and apply correct termination and biasing. Use switched Ethernet star or line architectures for Modbus TCP, depending on the installation.

Evaluate Accuracy, Durability, Installation, and Maintenance Needs

Choosing a Modbus sensor starts with the measurement, not the communication port. Define the required accuracy, range, resolution, and response time beside the process equipment. A temperature sensor with ±0.2°C accuracy may be excessive for ventilation, but insufficient for laboratory control. Check calibration conditions, drift data, and traceability to national standards. NIST measurement guidance stresses that uncertainty includes the sensor, installation, and surrounding process. The datasheet alone is not enough.

Durability depends on the actual site. Review operating temperature, humidity, vibration, chemicals, and enclosure protection under IEC 60529. A high ingress rating cannot compensate for poor cable glands or constant condensation. For long RS-485 runs, follow the Modbus Serial Line Guide. Use correct termination, shield practice, grounding, and address settings. Keep power and communication cables separated where electrical noise is likely. Test the sensor at its final location; laboratory accuracy can change after mounting.

Maintenance is often underestimated. The U.S. Department of Energy’s Operations & Maintenance Best Practices Guide reports that preventive maintenance can save 12–18% compared with reactive maintenance. Build a schedule around drift, contamination, and access time. Choose sensors with replaceable probes or simple calibration procedures when downtime is costly. I would avoid buying the most precise model by default. It may add calibration work without improving decisions. Document each reading, adjustment, and failed connection. Small records matter. A practical selection sometimes looks less impressive, but it survives the plant floor.

Select the Best Sensor Based on Cost, Support, and Future Expansion

Choosing the right Modbus sensor starts with the total cost, not the price on the product page. A low-cost unit may need extra converters, longer commissioning, or frequent recalibration. Check the sensor price, installation labor, cable length, enclosure rating, and expected maintenance.

I once selected a cheaper temperature sensor for a humid equipment room. It worked during testing, but condensation later caused unstable readings. The replacement cost exceeded the original saving. That mistake changed my evaluation process. I now inspect operating temperature, humidity limits, connector protection, and calibration records before approval.

Support can save more time than a discount. Ask whether technical staff can explain register addresses, data types, baud rates, and error codes. Clear manuals matter. So do response times, spare-part availability, and firmware documentation. A five-minute wiring question should not become a week-long delay.

Think beyond today’s installation. If the system may grow from six sensors to thirty, check the controller’s address range, network loading, cable topology, and power capacity. Select sensors with consistent communication settings and readable registers. Future expansion is easier when every device follows the same installation rules.

Leave room for change. I do. Even careful plans miss something, such as limited cabinet space or unexpected electrical noise. A practical choice balances purchase cost, dependable support, and enough flexibility for the next project.
